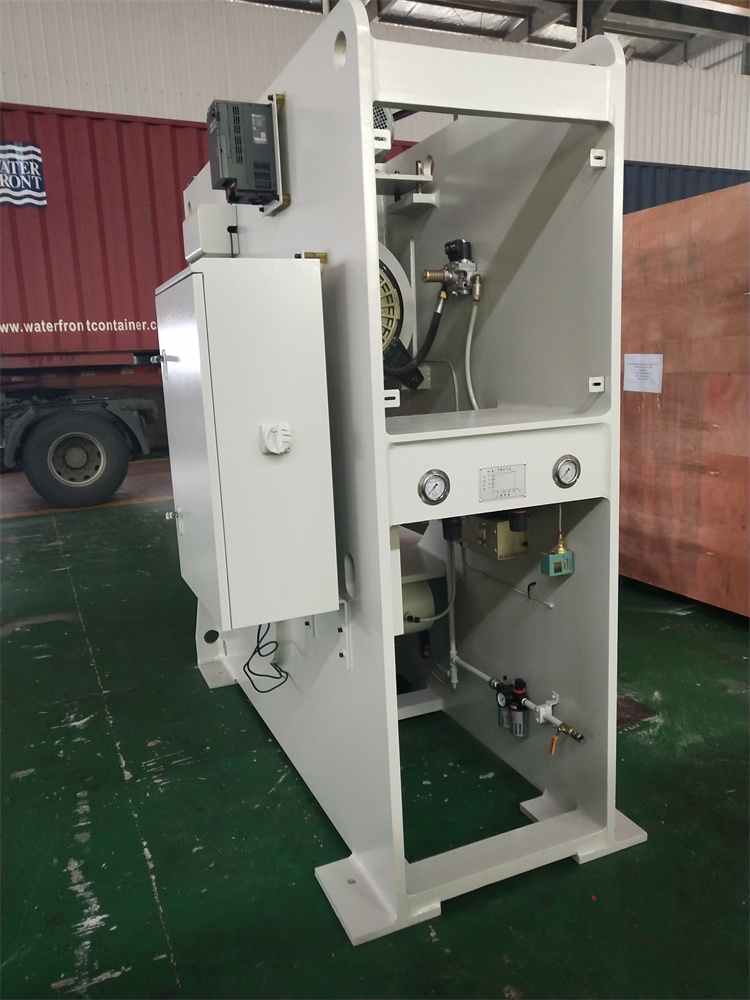

Competitive Price Pneumatic Power Press Punching Machine

Horizontal Crankshaft.

Combined dry pneumatic Friction clutch and brake.

Manual die height adjustment with scale display.

Safety dual solenoid valve

PLC of international brand

Thể loại	Throat Depth/mm	Motor/kw	Weight/kg	Nominal/kn
JH21-25	210	3	2450	250
JH21-45	225	5.5	3550	450
JH21-60	270	5.5	5150	600
JH21-80	310	7.5	6450	800
JH21-100	330	7.5	8650	1000
JH21-125	More detalis, please contact our saler, will give you best solution.......

Machine Body

Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.

NC Control system

• Six programmable limit switches

• Four programmable die protection inputs

• LCD display screen for status and fault messages

• LED display for crank angle and spm

Pneumatic clutch & brake

• Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.

• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

Safety light curtains:

• Protective fence and the safety interlock to ensure the operation safety. have a movable single-hand pedal switch,easy to operate.

• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

Control button station

• Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
